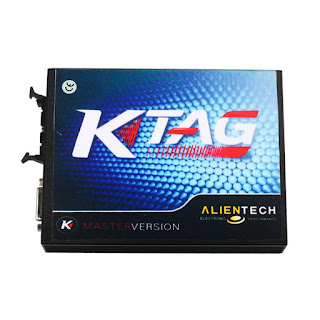

Here is a tutorial for using KTAG K-TAG ECU Programming Tool Master to read VAG Audi A3 ECU EDC17C46 on bench. Steps are as follows:
Step1. Open Audi A3 ECU EDC17C46 unit: first heat the edge to soften glue inside then open it carefully not to damage the circuit board.

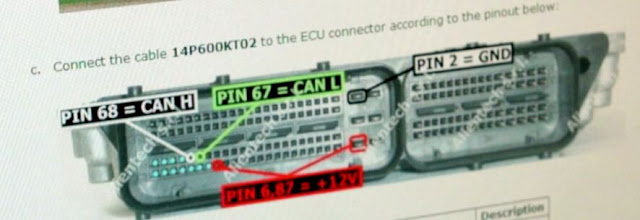

Step2. Open KATG K-TAG software. Connect the cable 14P600KT02 to ECU connector according to following pin out diagram:
Step3. Take a wire, cut the wire cover at the middle. Solder its two ends to the two pins (red) as follow:

Step4. Back to K-TAG software, choose plug-in “P199” and click “OK”.
Click “Read” and wait it 100% complete. And then save the bin file. Now KTAG ECU Programming Tool read VAG Audi A3 ECU EDC17C46 successfully!
